About Diaphragm Valve Exporter from Mehsana India

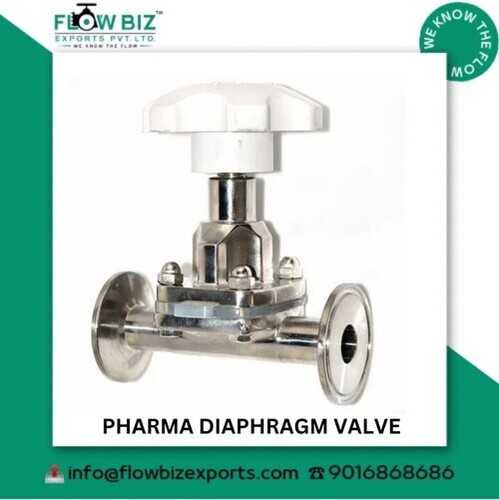

FlowBiz Precision-Engineered Stainless Steel Diaphragm Valves: Advanced Flow Control for Corrosive Media

The FlowBiz diaphragm valve is a highly efficient bi-directional flow control instrument specifically engineered for isolating and throttling aggressive, viscous, or high-purity media. The valve operates via a flexible, resilient elastomeric diaphragm linked to a compressor component. When the manual handwheel is rotated, the compressor lowers the diaphragm, pressing it against the bottom sealing weir of the valve body to form an absolute, leak-proof barrier.

Because the flexible diaphragm completely separates the valve's mechanical bonnet components from the moving fluid stream, it eliminates the risk of media contamination and stem packing leaks. This unique architecture makes it the premier choice for extreme vacuum service, sterile processing, and highly abrasive chemical slurries.

Technical Specifications & Parameters

FlowBiz diaphragm valves are built to endure aggressive line dynamics while maintaining strict structural density.

Parameter	Specification Details	Industrial Process Advantage
Body Metallurgy	Premium High-Grade Stainless Steel (SS)	Outstanding structural base resistance to localized pitting and chemical wear.
Size Spectrum	inch to 12 inches (DN6 to DN300)	Covers everything from micro-metering lines to major utility headers.
Connection Profile	Industrial Flange Type End Configuration	Distributes pipeline joint stress uniformly and simplifies inline removal.
Surface Finish	Corrosion-Resistant Silver Coating	Provides an extra layer of protection against harsh atmospheric conditions.
Pressure & Thermal	High-Pressure Architecture & High-Heat Tolerant	Retains strict sealing tolerances during sudden process transients.
Operational Control	Manual Handwheel / Actuator Ready	Easily interfaces with automated pneumatic diaphragm actuators for control loops.

Critical Application Sectors & Versatility

Thanks to their cavity-free internal design, FlowBiz diaphragm valves prevent media entrapment, crystallization, and chemical stagnation, serving as a critical asset in countless heavy-duty sectors:

• Water Treatment Facilities: Efficiently manages raw water intake, backwash lines, and aggressive water-treatment chemical dosing.

• Pharmaceutical & Food Processing Systems: Provides a clean, sterile fluid pathway that resists bio-burden buildup and allows for thorough Clean-in-Place (CIP) sterilization.

• Chemical Processing Plants & Refineries: Safely throttles highly corrosive acid streams, caustic solutions, and unrefined hydrocarbons.

• Vacuum Services & Power Industries: Maintains airtight sealing integrity in high-vacuum lines and handles abrasive bottom-ash slurry lines in power generation loops.

Key Performance & Design Advantages

1. Superior Chemical & Corrosion Resistance

Pairing a high-grade stainless steel body with a non-porous elastomeric diaphragm creates an incredibly durable chemical shield. Highly reactive process fluids cannot come into contact with moving mechanical stem parts, preventing internal component corrosion, stem seizing, and product contamination.

2. Precise Flow Throttling Capacity

Unlike standard quarter-turn isolation devices, a diaphragm valve offers highly predictable linear throttling characteristics. The gradual upward or downward travel of the compressor allows plant operators to adjust the cross-sectional fluid passage area with micro-precision, making it an excellent alternative to conventional globe valves for regulating flow rates and managing process variables.

3. High-Integrity Flange Type Connection

A flange-type connection utilizes a circular multi-bolt configuration that clamps the valve body rigidly to matching pipeline flanges. This structure provides excellent joint mechanical stability, eliminates leak paths under intense system pressure, and allows maintenance crews to quickly unbolt the unit for offline diaphragm replacement without altering the surrounding pipe framework.

Trusted Manufacturer and Global Exporter from Mehsana, India

Operating out of the strategic industrial corridor of Mehsana, Gujarat, FlowBiz Exports Pvt. Ltd. acts as an integrated exporter, manufacturer, supplier, and trader. We adhere to rigorous global quality standards, ensuring every production batch undergoes mandatory hydrostatic shell testing, pneumatic seat-leakage diagnostics, and material traceability verification. Whether managing high-purity pharmaceutical lines or high-stress refinery headers, our valves deliver dependable, low-maintenance performance worldwide.

Frequently Asked Questions (FAQs)

Q: What is the main structural advantage of a weir-type diaphragm valve body?

A: A weir-type diaphragm valve features a raised ridge or "weir" inside the fluid channel. Because the weir shortens the distance the diaphragm needs to travel to create a seal, it puts significantly less mechanical stress on the elastomer during closure. This extends the lifespan of the diaphragm and makes the valve highly effective for precision throttling and vacuum applications.

Q: Why are diaphragm valves uniquely suited for vacuum service and toxic chemical transport?

A: Standard valves (such as gate, globe, or ball valves) rely on a sliding or rotating stem that passes through a packing box to the outside environment, creating a potential path for fugitive emissions or vacuum loss. A diaphragm valve uses a solid, flexible barrier bolted tightly between the body and the bonnet. This entirely encapsulates the media within the pipe channel, ensuring absolute zero leakage to the atmosphere.

Q: How do you determine the correct diaphragm material for a chemical line?

A: Diaphragm selection depends on the chemical composition, concentration, operating temperature, and pressure of your process fluid. FlowBiz offers a broad variety of resilient optionsincluding EPDM, PTFE (Teflon), Viton, and Neoprene. For aggressive acids or solvents, a PTFE diaphragm backed by an EPDM cushion is highly recommended to combine supreme chemical inertness with robust mechanical flexibility.

Q: What is the step-by-step process for executing a manual diaphragm replacement?

A: 1. Isolate the pipeline section and completely depressurize and drain the line.

2. Loosen and remove the bonnet bolts holding the valve assembly together.

3. Lift the bonnet assembly clear of the body to expose the worn diaphragm.

4. Unthread or unclip the old diaphragm from the compressor mechanism and install the clean replacement.

5. Place the bonnet back onto the valve body and cross-tighten the bonnet fasteners in a progressive, star-pattern sequence to ensure uniform sealing pressure.

Q: When should an engineer automate a diaphragm valve with a pneumatic actuator?

A: Automation using a pneumatic diaphragm actuator is highly recommended for valves that are cycled frequently, located in remote or hazardous areas, or integrated into an automated process control loop. When paired with digital electropneumatic positioners, a pneumatic actuator adjusts the valve's opening precisely in response to real-time sensor feedback, stabilizing system pressures and flow rates automatically.
