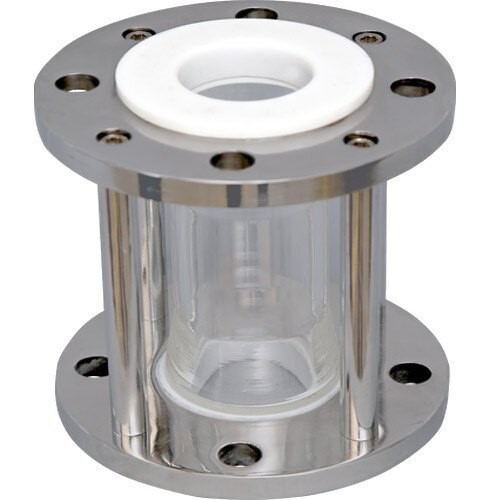

Full View Sight Glass Manufacturer in India

Price 2000 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

Full View Sight Glass Manufacturer in India Specification

Valve Size
Inch to 6 Inches

Features
360-degree full view, toughened borosilicate glass, robust frame, leak-proof construction

Material
Carbon Steel, Stainless Steel (SS304/SS316), Brass, or as specified

Control System
Manual observation device

Valve Type
Not a valve (visual indication device)

Connection Type
Flanged, Screwed (BSP/NPT), or Socket Weld

Sealing
PTFE, Neoprene, EPDM, or Viton gaskets

Application
Observation and monitoring of liquid flow in pipelines and processing systems

Structure
Full view cylindrical body with transparent glass tube and protective frame

Type
Full View Sight Glass

Power
Not applicable (mechanical device)

Pressure
Max. 10 kg/cm (can vary as per model and glass strength)

Media
Liquid, gas, and chemicals

Port Size
to 6 (custom sizes available)

Temperature
Up to 150C (can vary based on gasket and glass type)

Gasket Compatibility
Suitable for corrosive, non-corrosive, and food-grade applications

OEM Service
Available for custom manufacturing

End Connection Standard
ANSI, DIN, JIS, or IS

Working Life
Designed for long operational life in industrial environments

Glass Material
Borosilicate or Acrylic (depending on process requirement)

Frame Finish
Powder coated, electro polished, or as required

Mounting Orientation
Horizontal or vertical

Maintenance
Easy to dismantle and clean

Inspection Window Length
Customizable from 50 mm to 1000 mm

Full View Sight Glass Manufacturer in India Trade Information

Minimum Order Quantity
1 Number

Delivery Time
7 Days

About Full View Sight Glass Manufacturer in India

Full View Sight Glass Indicator is a sturdy translucent device that is in high demand within flow-based industrial systems for visual inspection of fluid conditions within pipelines and containers. This industrial-grade component allows the operators to easily see the contents without the need for physical access or instrumentation. Premium-grade glass and plastic are used for manufacturing the offered glass indicator that provides high mechanical strength, rigidity, and chemical resistance. It can be used in tanks, vessels, pipelines, and other fluid-handling units. The real-time visual feedback, allows you to make easy adjustments if necessary. Customers can get Full View Sight Glass Indicator as per their requirements in bulk with an assurance of fast and safe delivery at a reasonable price.

Features

Robust Construction with excellent crack resistance.
Safe operation at extreme pressure and temperature.
Clear observation window to get a clear view.
Equipped with synthetic seals to make leakproof connections.

Versatile Material and Connection Options

Select between borosilicate or acrylic glass materials based on your process needs, ensuring chemical resistance or cost efficiency. End connections follow international standards-ANSI, DIN, JIS, and IS-enabling seamless integration with diverse pipeline systems across industries.

Customizable and Durable Design

Full View Sight Glasses feature customizable inspection window lengths-from 50 mm to 1000 mm-catering to specific visibility requirements. Supported by tough frames and advanced sealing options, these devices offer long operational life even in demanding industrial environments.

Effortless Maintenance and Hygiene

Engineered for straightforward dismantling, each unit can be easily cleaned or serviced. Gasket options such as PTFE, Neoprene, EPDM, or Viton guarantee compatibility with a wide spectrum of process media, including food-grade systems.

FAQ's of Full View Sight Glass Manufacturer in India:

Q: How do I choose the appropriate glass material for my process?

A: Select borosilicate glass for superior thermal and chemical resistance, especially in high-temperature or corrosive applications. Acrylic glass may be chosen for less demanding conditions or where cost efficiency is important.

Q: What industries commonly use Full View Sight Glasses?

A: These sight glasses are widely used in chemical, pharmaceutical, food and beverage, and petrochemical industries for observing liquid levels, verifying flow, and ensuring process integrity.

Q: When should the gasket be replaced, and which type is best suited for my application?

A: Gaskets should be replaced whenever signs of wear, leakage, or chemical degradation appear. PTFE is optimal for aggressive chemicals, EPDM for food and water systems, and Viton for high-temperature or chemical-resistant applications.

Q: Where can the Full View Sight Glass be installed in a system?

A: These devices can be mounted horizontally or vertically on pipelines, tanks, or processing equipment, offering a 360-degree full view in both orientations to maximize monitoring efficiency.

Q: What is the process for cleaning and maintaining the sight glass?

A: The sight glass is designed for effortless dismantling. To clean, simply disconnect the device, remove the glass tube, and inspect or wash as needed before reassembly. Regular maintenance extends the operational life and ensures safety.

Q: What are the main benefits of using a Full View Sight Glass in industrial applications?

A: Key benefits include continuous visual inspection of media, early detection of flow issues, compatibility with various chemicals and temperatures, easy maintenance, and the ability to customize dimensions and finishes to meet specific installation requirements.
