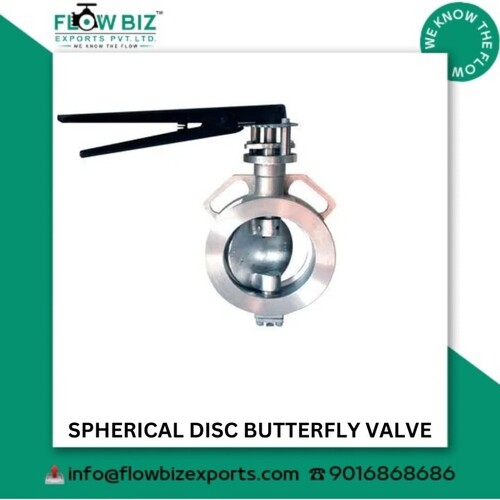

FlowBiz Industrial Spherical-Disc Butterfly Valves High-Clearance Powder & Slurry Control

Welcome to the engineering authority for high-frequency bulk solids manipulation, frictionless powder isolation, and advanced pneumatic conveying management. Operating precision spherical-grinding centers, heavy-duty metallurgical casting blocks, and certified torque-profiling validation loops, FlowBiz specializes in manufacturing premium-grade Spherical-Disc Butterfly Valves.

FlowBiz is the top Spherical Disc Butterfly Valve Manufacturer in Vapi, Gujarat, India. Engineered as a highly efficient alternative to traditional slide gates and standard concentric butterfly valves, these units utilize a specialized, dynamically contoured undercut disc segment. This advanced geometry allows the valve to slice cleanly through packed columns of hygienic powders, abrasive slurries, and sticky media without wiping out the elastomeric seats or jamming the system, ensuring dependable longevity across India's premier processing networks.

Technical Specifications & Operational Parameters

Every FlowBiz production lot is precision-fabricated and subjected to 100% rigorous hydro-pneumatic seat leak verification, body shell pressure validation, and multi-cycle low-torque calibration checks.

Kinematics & Frictionless Spherical Self-Cleaning Mechanics

The primary advantage of the FlowBiz spherical-disc layout is its path of motion, which prevents the material buildup and high structural friction common in traditional quarter-turn valves:

• Undercut Spherical Disc Segment: Unlike traditional flat butterfly discs that push tightly against the rubber liner during the entire opening and closing cycle, our disc features a hand-polished, spherically machined outer rim segment. This profile reduces initial seating resistance and requires very low operating torque, allowing for smaller, more economical automated configurations.

• Self-Sealing & Self-Cleansing Geometry: As the spherical disc rotates into its closing seat, its swept perimeter creates a natural cutting action. The disc segment wipes material cleanly away from the active sealing zone, preventing dry powders, granulates, or sticky slurry fibers from compacting inside the seat pocket.

• Uniform Gland Utilization: To eliminate line leakage along the stem under vacuum or pressure, the top works feature an engineered gland pressing plate. This plate applies uniform vertical force down onto the packing seats, maintaining a tight, leak-proof seal around the shaft across thousands of rapid operation cycles.

          OPEN FLOW STATE (MAX CLEARANCE MASS FLOW)       CLOSED SHUT-OFF STATE (SPHERICAL CLAMP SEAL)

                       [ LOW-TORQUE ROTATION AXIS ]                   [ EQUALIZED GLAND PRESSING PLATE ]
                                    ||                                             ||
                                    \/                                             \/
                        +------------------------+                     +------------------------+
                        |   Heavy Stem Packing   |                     |   Heavy Stem Packing   |
                     +--+------------------------+--+                 +--+------------------------+--+
                     |  [ REPLACEABLE BODY SEAL ] |                 |  [ MATERIAL WIPED CLEAN ]  |
                     |       /---|  |---\        |                 |     /================\   |
 ===================>|      | Undercut   |       |================>|====>| Undercut       |<====| Reverse Backflow
 Dense Powder /      |      | Spherical  |       | Mass Flow Out   |     | Spherical Disc |     | Flue Gas / Media
 Slurry Inflow Stream|      | Disc       |       | (Full Port      |     | Sealed Tight   |     | Completely Held
                     |       \---|  |---/        | Minimal Drop)   |     \================/   | (Zero Jamming)
                     +----------------------------+                 +-----+----------------+-----+
                        | Compact Carbon/Iron Shell|                   | Compact Carbon/Iron Shell|
                        +------------------------+                     +------------------------+

Core Engineering Features & System Advantages

• Compact Design & Full-Port Performance: The streamlined body delivers full-port performance, allowing for mass fluid and powder flow with negligible pressure drops, while its light weight simplifies inline piping support.

• Frictionless Seat Longevity: The modular, replaceable seal design ensures that if the seat layout wears down after handling abrasive products, it can be swapped out quickly on-site without scraping the entire metal housing.

• Low Torque & Smooth Cycling: The spherical disc edge limits metal-to-seat friction, allowing the valve to open and close smoothly in a fraction of the time required by alternative valve configurations.

• Proven Performance Edge: When compared to bulky gate or ball options, this valve provides a highly competitive blend of reduced physical footprint, extended pressure range compatibility, and superior long-term cost efficiency.

Strategic Industrial Application Sectors

• Pharmaceutical Processing Utilities: Managing hygienic active powders, dry granulates, pill tablet transport runs, and sensitive chemical slurries.

• Textile & Dyeing Processing Units: Controlling volatile dye mixtures, industrial wastewater streams, and aggressive chemical processing fluids.

• Food & Beverage Manufacturing: Isolating bulk ingredient silos, dry powder mixing loops, sugar transfers, and processing lines.

• Boilers, Refineries, & Petrochemical Utilities: Restricting or routing high-temperature flue gas flows in industrial boiler stacks and large fuel storage tanks.

• Utility Supply Lines: Handling bulk cooling water loops, low-pressure industrial steam runs, plant air/gas headers, and process vacuum networks.

Seamless Logistics & Supply Network Across India

FlowBiz is recognized as a preferred manufacturer of Spherical Disc Butterfly valves in India. We maintain comprehensive stock reserves and provide rapid, secure transport services to ensure on-time delivery across all major industrial manufacturing corridors:

• Gujarat Hubs: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, and Bharuch.

• Maharashtra Corridors: Mumbai, Nashik, Pune, Thane, Aurangabad, Satara, Sangli, Nagpur, and Kolhapur.

• Central & Southern Industrial Zones: Indore, Dewas, Bhopal, Chennai, Coimbatore, Salem, and all other processing manufacturing zones nationwide.

Are you designing a pharmaceutical powder-transfer system that requires a hygienic, low-torque spherical disc valve, or retrofitting an industrial boiler stack to handle high-temperature flue gas isolation? Contact the FlowBiz technical sales and engineering division today to secure a factory-direct quote, or ask a single relevant question regarding your specific powder density or seat material parameters below to guide the conversation forward.
