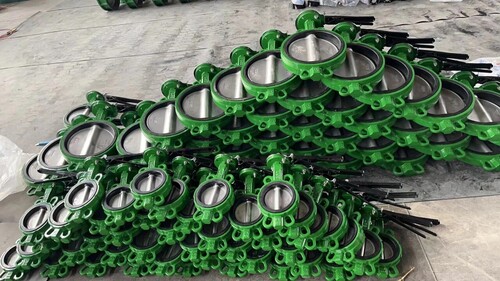

High Performance PTFE Butterfly Valve

Technical Specifications & System Compatibility

Every production block undergoes 100% rigorous high-voltage non-destructive spark auditing of the polymer seating matrix alongside strict hydrostatic shell pressure validation to guarantee total compliance with industrial pipeline parameters.

Kinematics & Concentric Fluoropolymer Sealing Mechanics

The quarter-turn operation of a concentric PTFE-seated butterfly valve utilizes a disc rotating around a central axis, providing rapid shut-off within a highly compact footprint:

 OPEN FLOW STATE (QUARTER-TURN CLEARWAY) CLOSED SHUT-OFF STATE (RESILIENT PTFE SEAL) [ QUARTER-TURN ACTUATION ] [ QUARTER-TURN ACTUATION ] \/ \/ +------------------------+ +------------------------+ | Concentric Stem Axis | | Concentric Stem Axis | +--+------------------------+--+ +--+------------------------+--+ | [ VIRGIN PTFE SEAT ] | | [ COMPRESSED PTFE SEAL | /---| |---\ | | /================\ | ===================>| | Polished | |================>|====>| Polished SS |<====| Process Backflow Process Fluid Stream| | SS Disc | | Smooth Outflow | | Disc Rotated 90| | Liquid Contained Inflow Path | \---| |---/ | Low Pressure | | Blocks Fluid | | (Zero Leakage) +----------------------------+ Drop +-----+----------------+-----+ | Green Armor Outer Body | | Green Armor Outer Body | +------------------------+ +------------------------+

• Absolute Fluid Isolation: The internal wetted bore of the valve body is lined with a thick, continuous sleeve of pure virgin PTFE. This non-reactive liner isolates the outer structural metal body from the process fluid, preventing galvanic wear, pitting, or rust formation.

• Resilient Concentric Compression: Sealing is achieved through a concentric layout where the polished outer edge of the rotating stainless steel disc compresses uniformly against the resilient PTFE body seat liner. This PTFE sleeve is typically backed by an elastomeric cushion (such as EPDM or silicone) to provide continuous, energizing spring-back pressure, guaranteeing a bubble-tight seal.

• Low-Friction, Extended Lifespan: Because virgin PTFE has an exceptionally low coefficient of friction, the metal disc rotates smoothly within the seat. This minimizes the operational torque required from manual levers or gear operators, dramatically lowers structural friction wear, and ensures sustained sealing integrity over an extended operational life.

Core Engineering Features & Plant Benefits

• Superior Chemical and Water Resistance: The premium PTFE seat provides outstanding resistance to chemical attack, scaling, and degradation, making these valves ideal for demanding plant and surface applications.

• Sustained Operational Excellence: Built with a durable green-coated outer body and high-grade internal components, these valves resist external environmental weathering and internal pipeline forces, delivering reliable, long-lasting performance.

• Comprehensive 1-Year Warranty: All valves are backed by a robust 1-year enterprise warranty covering hidden manufacturing defects, ensuring worry-free usage and minimized unexpected plant downtime.

• Evaluating Sourcing Security: To facilitate data-driven engineering decisions, we maintain a transparent sample policy that allows quality assurance teams to test and evaluate our valves at competitive rates before committing to larger bulk procurement runs.

Strategic Industrial Application Sectors

Our PTFE Seated Butterfly Valves adapt seamlessly to varying operational demands, ensuring cost-effective performance across multiple domains:

• Industrial Water Treatment & Desalination: Regulating filtration headers, brine lines, backwash pump circuits, and chemical dosing manifolds.

• Chemical Plants & Utility Grids: Managing low-concentration chemical transfer streams, neutralizer pipelines, and auxiliary process water loops.

• Pharmaceutical & Beverage Manufacturing: Controlling secondary utility fluids, clean water distribution grids, and low-viscosity non-sticky processing media.

• HVAC & Large-Scale Commercial Cooling: Regulating chilled water distribution, cooling tower loops, and secondary thermal management grids.

Frequently Asked Questions (FAQ)

Q: How is the PTFE Lined or Seated Butterfly Valve suitable for industrial water applications?

A: The valve is specifically engineered for water media and chemical delivery streams. Its premium virgin PTFE seat liner offers excellent chemical resistance and prevents internal line corrosion, scale build-up, and material pitting. This design ensures absolute fluid isolation and consistent reliability in both plant and surface pipeline applications.

Q: What are the main competitive advantages of using this butterfly valve?

A: Our PTFE Seated Butterfly Valves deliver unparalleled performance by combining low operating torque with bubble-tight, zero-leakage isolation. They require minimal routine maintenance and utilize standard face-to-face dimensions for effortless installation between standard flanges, resulting in significant operational cost savings and a long working life.

Q: When can I expect to receive my valve sample after placing an order?

A: Sample orders intended for engineering evaluation are processed promptly at our complex. Once your technical parameters and size metrics are validated, we coordinate secure, impact-resistant packaging and prompt dispatch, ensuring the sample arrives safely within a predictable, communicated timeline.

Q: Where are your butterfly valves manufactured and supplied from?

A: All of our valves are manufactured, spark-tested, and pressure-validated at our advanced production facilities in Surat, India. Operating as a leading exporter, supplier, and trader, we manage direct distribution corridors supplying these units to manufacturing hubs across the country and globally.

Q: What is your official sample policy for the PTFE Seated Butterfly Valve?

A: We offer product samples at a modest cost so that enterprise buyers and plant engineers can thoroughly evaluate the valves build quality, dimensional alignment, and material efficacy before committing to a final, large-scale purchase order.

Q: How does the warranty process work for your valves?

A: Every valve shipped from our inventory is covered by a comprehensive 1-year warranty that protects your facility against hidden manufacturing defects or premature material failure. If a technical issue occurs within the warranty period, you can contact our after-sales support team for prompt evaluation, servicing, or component replacement.
