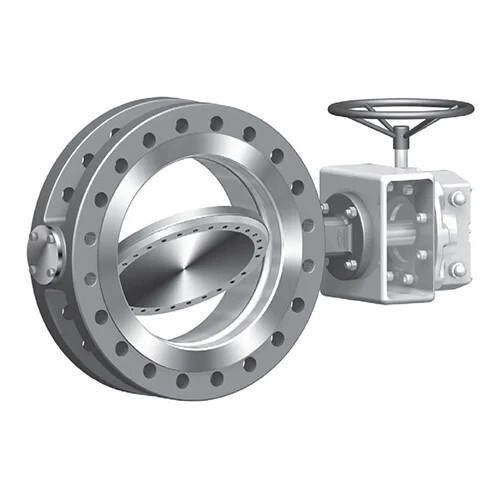

Triple Eccentric Butterfly Valve Supplier Mumbai

About Triple Eccentric Butterfly Valve Supplier Mumbai

High-Performance Triple Offset Butterfly Valves: The Ultimate Industrial Sealing Solution by Flowbiz Exports Pvt. Ltd.

In high-stakes industrial processing, achieving an absolute, gas-tight seal under extreme thermal and pressure conditions is critical to operational safety and efficiency. Flowbiz Exports Pvt. Ltd. designs, engineers, and manufactures world-class Triple Offset Butterfly Valves (TOBVs) built to outperform traditional isolation technology.

As a premier industrial valve manufacturer and global exporter based in India, Flowbiz delivers high-performance, fire-safe, metal-to-metal seated butterfly valves. These valves serve as the global benchmark for high-pressure throttling, critical isolation, and vacuum applications. Whether you are replacing bulky, high-maintenance gate valves or require dependable bi-directional flow control, our triple eccentric geometry provides an engineered solution that slashes operational expenses (OPEX), minimizes downtime, and extends equipment life.

Understanding the Triple Offset Geometry: How It Works

Unlike standard concentric or double offset (high-performance) butterfly valves, the Flowbiz Triple Offset design utilizes a unique, non-rubbing geometric profile that completely eliminates friction between the valve seat and the seal ring during rotation.

Offset 1: The shaft is placed behind the centerline of the sealing surface.

Offset 2: The shaft is displaced to one side of the pipe/valve centerline.

Offset 3: The seat cone axis is inclined away from the shaft centerline (creates a camming action).

This triple eccentric alignment ensures that the disc only contacts the seat at the final point of closure ($100\%$ tight engagement). This revolutionary mechanics-driven design reduces operating torque, prevents seat wear, and ensures a long service life.

Key Features & Business Benefits

         Zero-Leakage Integrity (Bi-Directional): Engineered to meet the strictest international sealing standards. It provides absolute bi-directional bubble-tight shutoff in both high-vacuum systems and extreme high-pressure lines.

         Frictionless Camming Action: Because the disc breaks contact with the seat immediately upon opening, mechanical wear and tear are virtually eliminated. This significantly lowers the Total Cost of Ownership (TCO) compared to gate or globe valves.

         Ultra-Low Fugitive Emissions: Designed to comply with modern global environmental mandates. Our advanced stuffing box and packing configurations drastically minimize hazardous fugitive emissions.

         Space, Weight, and Cost Efficiency: Compared to traditional gate or ball valves of equivalent pressure classes, Flowbiz TOBVs offer a compact, lightweight profile. This reduces your structural piping support costs, simplifies installation, and saves valuable plant footprint space.

         Inherent Fire-Safe Performance: Featuring robust metal-to-metal seating, our valves maintain sealing integrity even during and after severe fire exposure.

Technical Specifications & Engineering Standards

Flowbiz valves are precision-manufactured to rigid international design codes, ensuring seamless drop-in compatibility with global B2B piping networks.

Dimensions, Ratings, and compliance Matrix

Premium Materials of Construction (MOC)

To withstand severe erosion, chemical corrosion, and thermal cycling, Flowbiz utilizes fully traceable, certified metallurgy:

         Valve Body options: ASTM A216 Gr. WCB (Carbon Steel) | ASTM A351 Gr. CF8 / CF8M / CF3M (Stainless Steel 304, 316, 316L) | Duplex & Super Duplex Steel for marine use.

         Valve Disc options: ASTM A216 Gr. WCB | ASTM A351 Gr. CF8 / CF8M / CF3M (Stellited options available for abrasive media).

         Stem / Shaft Material: ASTM A564 Gr. 630 (17-4 PH Stainless Steel) | SS410 | SS316.

         Seat Configurations: Solid Metal-to-Metal Seating | Resilient SS316 + Graphite Laminated Layers | SS316 + PTFE Laminated for chemical purity.

Cross-Industry Applications

Thanks to their mechanical, torque-seated design, Flowbiz Triple Offset Butterfly Valves excel in volatile, harsh, and critical processing environments:

         Oil & Gas (Upstream & Downstream): Hydrocarbon processing, refining, tank farm isolation, and off-shore platforms.

         Petrochemicals & Chemicals: Handling volatile organic compounds (VOCs), acids, polymers, and corrosive gases.

         Power Generation: High-temperature steam isolation, cooling water lines, and condensate systems.

         Water & Wastewater Treatment: High-pressure transmission lines, desalination plants, and industrial water distribution.

         Pulp & Paper / Mining: Managing mildly abrasive slurries, bleaching agents, and black liquor processes.

Indias Trusted Industrial Valve Supplier & Global Exporter

Flowbiz Exports Pvt. Ltd. has built an unshakeable reputation for engineering precision and strict quality control. From our state-of-the-art manufacturing hubs, we cater to major industrial corridors in India while exporting high-performance flow control products across Europe, the Middle East, Southeast Asia, and the Americas.

Our Robust Pan-India Supply Network

         Gujarat: Ahmedabad, Vapi, Valsad, Surat, Gandhidham, Kutch, Ankleshwar, Bharuch, Vadodara.

         Maharashtra: Mumbai, Thane, Navi Mumbai, Nashik, Pune, Aurangabad, Satara, Sangli, Nagpur, Kolhapur.

         Madhya Pradesh: Indore, Dewas, Bhopal, Gwalior.

         Tamil Nadu: Chennai, Coimbatore, Salem, Tiruchirappalli.

         Other Regions: Delivering directly to industrial zones across Karnataka, Telangana, and West Bengal.

Partner with Flowbiz Exports Pvt. Ltd.

Looking for an upgrade? If you need to replace heavy, high-torque gate valves with an efficient, low-maintenance, and cost-effective alternative, Flowbiz Triple Offset Butterfly Valves are your definitive engineering choice.

Contact the Flowbiz Exports technical sales team today to request a comprehensive quote, access CAD drawings, or consult with our valve application engineers for custom face-to-face configurations tailored to your specific system requirements.
