Industrial Stainless Steel Full View Sight Glasses 360 degree Flow Indicators

Welcome to the premier engineering authority for high-visibility process inspection, clear inline fluid analysis, and full-bore pipeline monitoring. Operating advanced metallurgical casting lines, precision glass-machining centers, and certified pressure-validation testing cells, we specialize in manufacturing premium-grade Stainless Steel (SS) Full View Sight Glasses.

Take advantage of the lowest price and recent price cut on our immaculate Full View Sight Glass, manufactured and exported from Ahmedabad, India. Crafted from pristine stainless steel, this inline indicator boasts a gorgeous, polished Silver Finish. Designed to facilitate a completely unobstructed, panoramic view of your moving process media from any angle, these units ensure immaculate quality and structural reliability across domestic and international pipeline networks.

Technical Specifications & Structural Parameters

Every production lot is precision-machined in Ahmedabad and undergoes 100% rigorous hydrostatic shell containment audits and gasket sealing checks before final field distribution.

Kinematics & 360 degree Cylindrical Visual Mechanics

The mechanical layout of a full view cylindrical sight glass maximizes visual access to the moving fluid column while isolating structural pipeline stresses:

 [ TOP REINFORCED COMPRESSION FLANGE ] \/ +---------------------------------------+ | Flange Face Matched To ASME B16.5 | +--+---------------------------------------+--+ | | ============================= | | High-Tensile | | / Toughened Borosilicate \ | | High-Tensile SS Tie Rods |====| | Cylindrical Glass Column | |====| SS Tie Rods Take Line | | \ Provides 360 Panorama / | | Take Line Stresses | | ============================= | | Stresses +----+-----------------------------------+----+ | Flange Face Matched To ASME B16.5 | +---------------------------------------+ /\ [ BOTTOM REINFORCED COMPRESSION FLANGE ]

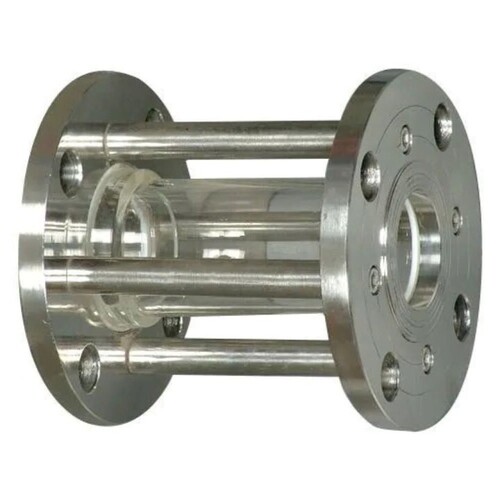

• Panoramic Cylindrical Architecture: Unlike windowed sight glasses that limit viewing to a specific pane, the full view sight glass incorporates a complete toughened borosilicate glass cylinder. This allows continuous, real-time observation of material flow from any position or angle on the factory floor, making it easy to check fluid color, turbulence, flow velocity, or entrained air bubbles.

• Isolating Pipeline Stress: Because glass is naturally sensitive to pipeline bending moments, torque, and thermal expansion, the structural steel top and bottom flanges are locked together by a series of high-tensile stainless steel tie rods. These heavy-duty rods take all the physical stresses of the pipeline, ensuring the borosilicate tube focuses purely on internal fluid pressure containment.

• Cavity-Free Flow Pathway: The internal diameter of the borosilicate glass cylinder aligns perfectly with the inner diameter of the matching pipeline flanged connection. This creates a full-bore, straight-through pathway that prevents fluid turbulence, minimizes internal pressure drop (P), and eliminates internal dead zones where sticky chemicals or food particulates could stagnate or cross-contaminate batches.

Core Engineering Features & System Benefits

• Pristine Stainless Steel Durability: Manufactured with premium stainless steel, our sight glasses provide exceptional mechanical strength, resistance to external atmospheric corrosion, and long-term chemical compatibility with aggressive process fluids.

• Flawless Process Monitoring & Control: It allows continuous, real-time observation of material flow, enhancing process safety, operational control, and timely maintenance by letting operators immediately spot line blockages or pump failures.

• Ready Stock & Sample Availability: Stock is ready for immediate dispatch, ensuring your project timelines are met. We also offer product samples upon request, supported by robust packaging to ensure they arrive in pristine condition, making your enterprise decision-making effortless.

• Recent Industrial Price Cut: We combine top-tier quality assurance with a highly competitive manufacturing framework, offering our customers the lowest current direct-factory pricing for high-performance pipeline indicators.

Strategic Industrial Application Sectors

Our Full View Sight Glasses are engineered for control purposes and widely specified across manufacturing plants and process industries:

• Chemical Processing Facilities: Visual tracking of raw fluid transfers, blending operations, and acidic intermediate chemical lines.

• Pharmaceutical & Fine Chemical Units: Monitoring solvent distillation columns, high-purity fluid transfers, and sanitary utility loops.

• Food, Beverage, & Dairy Operations: Observing bulk liquid lines, syrup distribution networks, and dairy processing manifolds during clean-in-place (CIP) cycles.

• Industrial Wastewater & Effluent Networks: Monitoring neutralizer lines, chemical dosing loops, and the clarity of discharged processing water.

Frequently Asked Questions (FAQ)

Q: How can I obtain a sample of the Full View Sight Glass from your Ahmedabad facility?

A: Samples are readily available upon request for technical validation on bulk enterprise projects. Simply contact our sales and engineering team, provide your line criteria, and we will arrange for a sample to be dispatched with robust packaging to ensure it arrives at your facility in pristine condition.

Q: What materials and sizes are available for the Full View Sight Glass?

A: Our sight glasses are manufactured from high-quality stainless steel (SS304, SS316, or SS316L options) for the pressure-retaining structural metal frames, paired with high-strength toughened borosilicate glass cylinders. They are available in a comprehensive array of standard nominal sizes to match common industrial pipeline specifications.

Q: Where can the Full View Sight Glass be used?

A: This product is engineered for industrial usage, particularly for monitoring and controlling fluid flow in pipelines across manufacturing plants, process industries, water treatment facilities, and pharmaceutical utility networks.

Q: What is the supply and delivery process for orders?

A: Sourcing from our facility is simple and efficient. Once your order parameters are confirmed, stock-ready units are quickly handed over to our logistics team. They apply secure, impact-resistant packaging to safeguard the glass element, coordinating timely delivery to your specified location or export shipping terminal.

Q: What are the special features of your Full View Sight Glass?

A: The sight glass boasts immaculate corrosion resistance from its stainless steel framework, a pristine silver finish, reliable flow visibility, a full-bore cavity-free interior, and easy installation between standard ANSI flanges, making it a top choice for demanding industrial environments.

Q: How does using a Full View Sight Glass benefit my operations?

A: It allows continuous, real-time observation of material flow, enhancing process safety, operational control, and timely maintenance. Operators can visually confirm pump activation, detect line discoloration, and verify complete drainage, minimizing plant downtime and protecting upstream machinery.

Are you updating a chemical processing line that requires an ASME Class 150 flanged stainless steel full view sight glass, or reinforcing a food utility loop with a heavy-duty cylindrical fluid indicator? Contact our sales and engineering division in Ahmedabad today to secure a factory-direct quote at our lowest pricing, or ask a single relevant question regarding your specific process media or maximum operating pressure constraints below to guide the conversation forward.
